Handheld Adapter for Testing Assembled PCBs

TEST-Mate

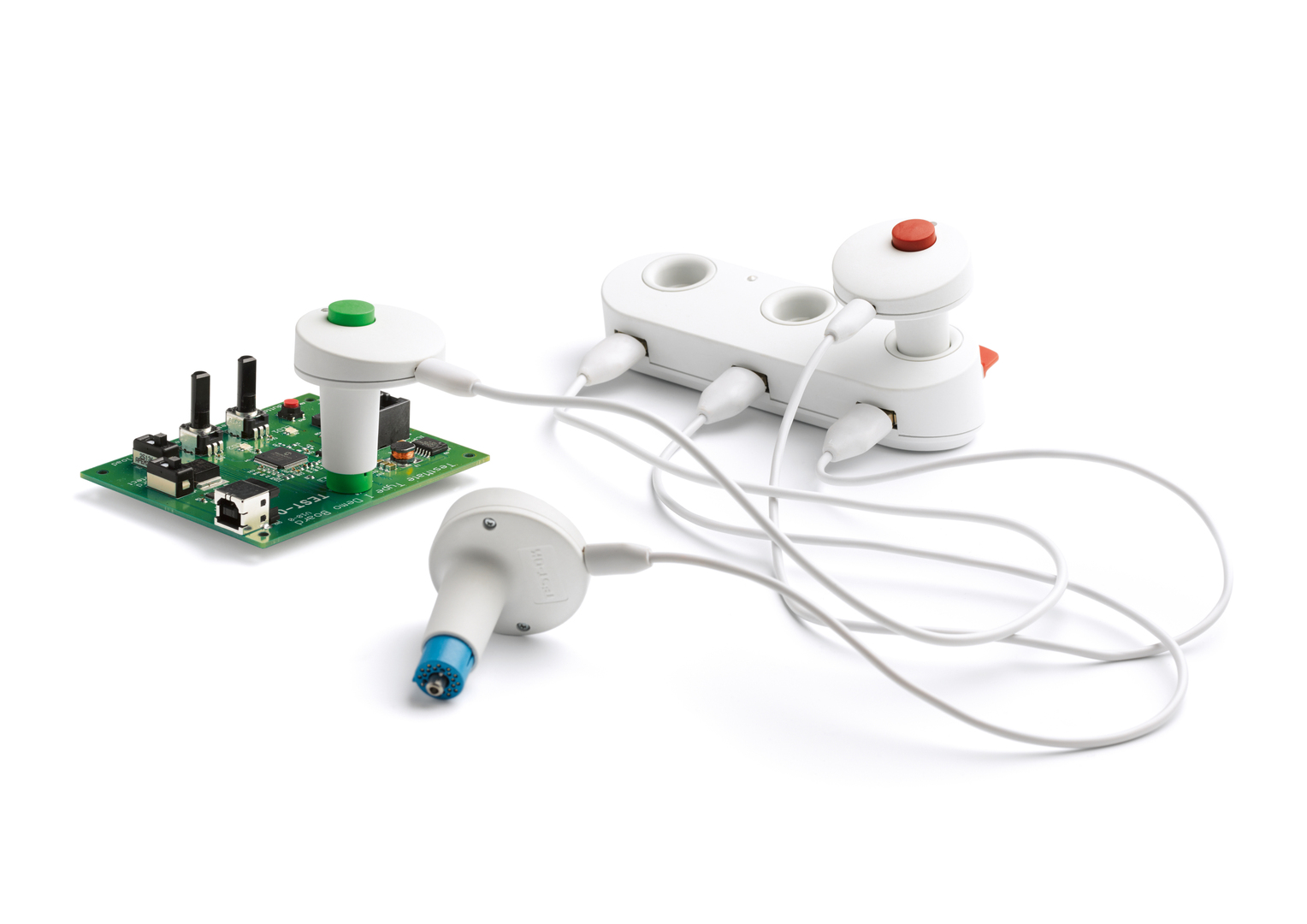

This small adapter is a hand-operated test system with integrated hardware, which connects the 21 contact pins directly with the printed circuit board (PCB). At the touch of a button, the device is locked onto the PCB and the functional testing can be carried out immediately via the included My-Test testing software. A second touch of the button releases the adapter. Test-Mate is connected to a docking station via a USB port, which also supplies it with power.

Statement by the Jury

The Test-Mate impresses with its innovative technology for measuring electrical currents. Colour coding and pleasing tactile qualities further improve its ease of use.
