Precision Gauge Block

Summit pointer SMT-15R

Back Download

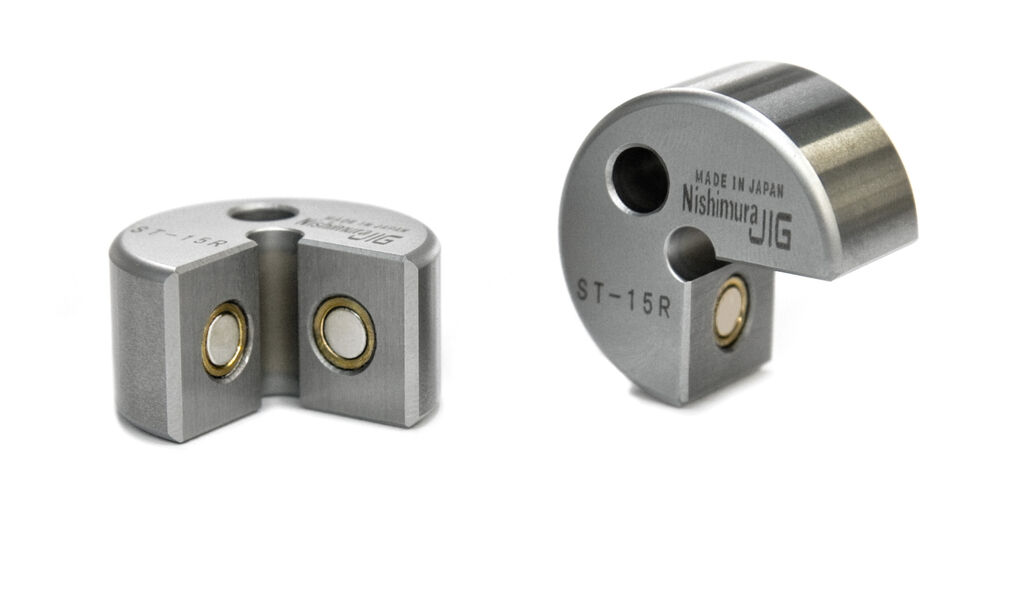

Summit pointer SMT-15R is a precision gauge block for measuring workpieces with bevelled or broken edges. The tool is positioned on a right-angled edge and, with its constant, precise radius, enables the user to accurately approach theoretical edges with measuring instruments, drill bits and milling tools. The contact surfaces are clearly indicated by their bevelled edges and, with their integrated neodymium magnets, provide a secure hold on metallic workpieces.

Statement by the Jury

The smooth, seamless and carefully finished design of this precision gauge block emphasises its high accuracy.

Red Dot

Credits
  • Manufacturer:
    Nishimura JIG Co., Ltd., Japan
  • In-house design:
    Nishimura JIG Co., Ltd., Akira Nishimura, Japan
  • Design:
    Scala Design technische Produktentwicklung, Scala Design und technische Produktentwicklung (Peter Theiss), Böblingen, Germany
